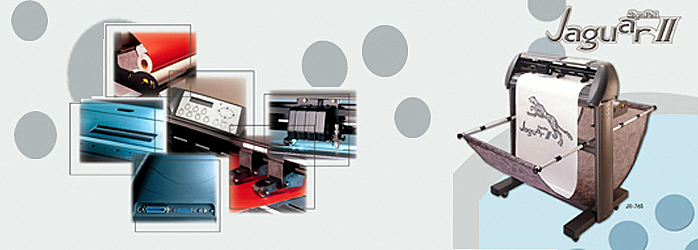

JAGUAR VINYL CUTTER

Intelligent unroll media & page command

Cut long plots or multiple copies without babysitting, JAGUARII intuitively release a roll of heavy and wide vinyl using the unroll media function or automatically starts the new plot with a specified top margin using the

Page command function.

User-friendly control panel

The simple to use and multi language control panel instinctive anticipate any move. LCD promoting comes in 8 language just choose your native language and enter a comfortable operating environment .

Efficient throughput

at up to 60 inch’s per second cutting speed JAGUARII ‘s cutting rate simply outperforms the competition.

Power cutting force

With up to 600 grams cutting force, cut a verity of materials from sandblast resist to vinyl film effortlessly. Even Coated laminated vinyl material presents no challenge for JAGUARII’S muscular power.

Innovative tangential emulative mode

The JAGUARII cutting plotter smoothly cuts small lettering or indicate graphics. It’s innovative tangential emulation mode yields clean corners and complete cuts on thick material.

USB Connectivity

The JAGUARII supports tri-port connectivity with serial, parallel and USB interface port.tri-port connectivity offers great flexibility for sign markers.

Selective pinch roller positioning

Each pinch roller can be operate individually and selectively. widening the JAGUARII cutting plotter’s range of applications. Cut the most delicate of films or the thickest materials up to 1.2mm.

Ingenious media basket

Equipped with unique media basket. JAGUARII ingeniously keeps your vinyl off the floor and away from the dust or contaminants. Your production will be clean and efficient operation.

Model-Jaguar II		JII-61	JII-76S	JII-101S	JII-132S
Operational Method		Roller -Type
Max Cutting Width		610mm(24in)	760mm(29.9in)	1016mm(40in)	1320mm(52in)
Max Media Loading Width		770mm(30.3in)	920mm(36.22in)	1270mm(50in)	1594mm(62.8in)
Number of Pinch Roller		3		4
Min Media Loading Width		50mm(1.97in)
Maximum Material Thickness		1.2mm(0.04in)
Drive		DC Servo Control
Cutting Force		0-600g
Maximum cutting speed		Up to 1530mm / sec (60in / sec. Diagonal)
Acceleration		4.2G(gravity)
Offset		0-1.0mm(with an increase of 0.025mm)
Distance Accuracy		0.254mm or 0.1% of move, which ever is greater.
Mechanical Resolution		0.00625mm(0.00025in)
Software Resolution		0.025mm(0.00098in)
Repeatability		0.1mm(0.0039in)
Buffer size		4MB (Data Buffer)
Interface		Parallel, Serial(RS-232C) and USB
Commands		HP-GL,HPGL/2
Slitter groove and tools		Yes
Configurable origin		Yes
Test Cut capability		Yes
Paper cutting capability		Yes
Re-plot function		Yes
Copy function		Yes
Curve and Arc smoothing		Yes
Tangential Emulation		Yes
Pouncing Tool		Optional
Over cut Capability		Yes
Contour cutting		Yes
Media Basket		Optional
Control Panel		LCM(20 digits x 2 Lines), 14 keys, 1 Power LED
Dimension	(H x W x D) mm	41x930x490	1166x1080x667	1166x1430x667	1166x1754x667
	(H x W x D) in	16.3X36.6x19.2	45.9X42.5X26.3	45.9X56X26.3	45.9X69.1X26.3
Net weight	Kg	37.2kg	40.5kg	53.3kg	81kg
	Pound	82lb	89.3lb	117.5lb	134.5lb
Power supply		AC 100-240 V (auto switch)
Power consumption		Max 110 watts
Environment Humidity		30%-70% relative humidity (operating)
Environment temperature		0° C - 55° C / 32° F to 131° F(operating) -40° C - 75° C / -40° F to 167° F(storage)
