GCC - Laserpro Gaia II
wit

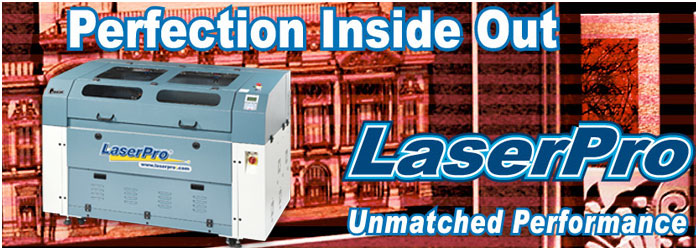

The LaserPro Gaia II is designed and engineered for professional use ever since the beginning.

Do not be fooled by the label of laser cutting system that is placed on the Gaia II , in fact the Gaia II is capable of exceptional engraving quality which separates it from the other laser cutting systems on the market.

With a series of user-definable features and reserved extension slots for customization, the Gaia II is the most flexible and user-friendly laser cutting system on the market today.

Specifications
Model GA ll-5106 GA ll-5110 GA ll-5120
Laser Source 60 W 100 W 200 W
Sealed CO2 Laser
Cooling Air-cooled Water-cooled
Work Area 50.7 in. x 36.1 in. (1290 mm x 916 mm)
Max. Part Size
(W x L x H)		 Normal 50.7 in. x 36.1 in. x 2.3 in. (1290 mm x 916 mm x 60 mm)
With SmartEXT 50.7 in. x ∞ in. x 1 in. (1290 mm x ∞ mm x 25 mm)
With Honeycomb 48.8 x 32.2 x 1.0 in. (1240 x 818 x 25 mm) / (With Sink-in Honeycomb Table)
Dimensions 71.6 in. x 49.2 in. x 52.3 in. (1820 mm x 1250 mm x 1330 mm)
Weight 420 Kg / 924 lb 440 Kg / 968 lb
Drive AC servo Control
Maximum Speed* 30 IPS
Throughput
(SIPH-Square Inch Per Hour)		 133.2 in 2/hr (864.2 cm2/hr)
Speed Control Adjustable from 0.1-100% (Up to 16 color-linked speed settings per job)
Power Control Adjustable from 0-100% (Up to 16 color-linked power settings per job)
Distance Accuracy 0.254mm or 0.1% of move, whichever is greater
Z-Axis Movement Manual
Focus lens Standard 4.0", optional 2.0" available
Resolution (DPI) Available 125, 250, 300, 500, 600, 1000
Computer Interface Standard printer port and USB 2.0** port
Memory Buffer 32MB standard
Lens Standard 4" focal lens in enclosed lens carriage (Optional 2" lens available )
Display Panel 4-line LCD panel showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus.
Safety Class 3R for red pointer
Cutting Table Knife-shaped cutting table with dust collecting tray
Facility Requirements
Operation Voltage AC 220 V / 15 A AC 220 V / 20 A AC 220 V / 20 A
Power Consumption 3300W 4400W 4400W
Air Extraction System External exhaust system required to connect to 8-inch opening on machine
Minimum required flow rate: 800m3/h
Air Compressor Air compressor required

*Speed does not equal to throughput. See dealer or visit www.gccworld.com for more details.

** File transmission at USB 2.0 Full Speed rate Specifications are subject to change without prior notice.
